Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale
  • Modular pagoda tent system for sale

Modular pagoda tent system for sale

Share

MARQUEES' SUPPORTING STRUCTURE

Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)

PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2

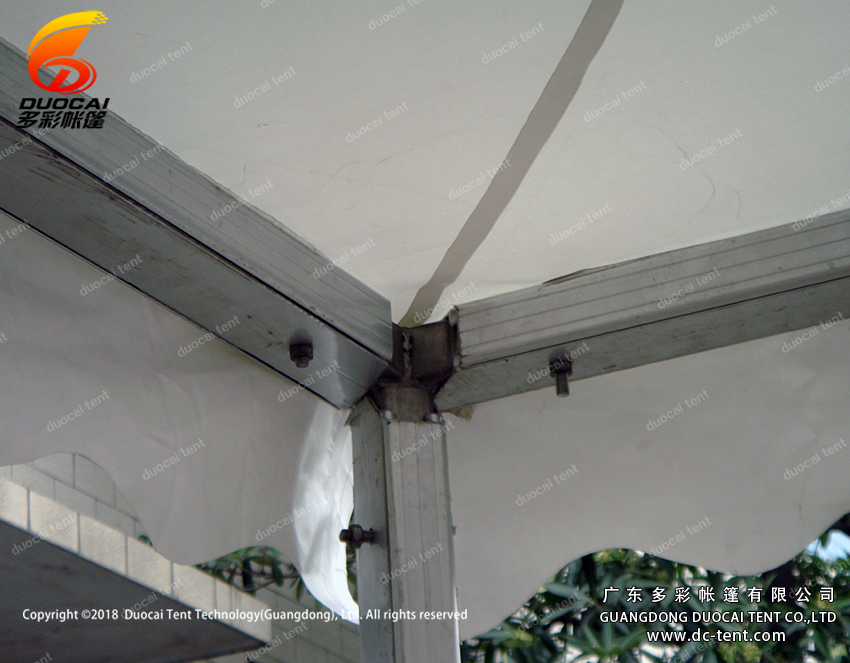

Connector: Strong hot-dip galvanized steel

Temperture allowed: -30 degree Celsius ) to +70 degree Celsius

Wind load Max 80 km/h, 0.3kn/sqm

Span: 3-10M

Length: 3-10M


Modular pagoda tent system for sale
Your One Stop Shop
SpanEave highTotal highMain plofile(mm)Bay distance(m)Roof slope(degree)Roof and side PVC color/ option
3M2.4M4.1M65*653/850g,650g,550g/sqm,

transparent,colorful and white etc;

PVC-coated polyester textile,flame

retardant to DIN 4102 B1,M2,CFM.

4M2.4M4.7M65*654/
5M2.7M5.4M65*655/
6M2.7M6M65*656/
8M2.7M5.5M121*688/
10M2.7M6.6M121*6810/

Modular pagoda tent system series size 8 × 8 meters and 10 × 10 meters, the standard side height is 3 meters, with four slots of 122 × 68 × 3 mm aluminum alloy tube bracket, the wind speed of 80 km / h (0.3 wind load KN / m2).

Large party tent can be a variety of optional configurations, such as: glass walls, glass doors, wooden floors, anchor and ceilings and so on.

In addition to using a large party tent can be used seperately, but also can be connected to form a larger area with a gutter, forming a unique shape, more exciting in outdoor activities.


  • Q: What size tent is necessary for your special event?

    A: A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.

  • Q: Can you print our logos on tent?

    A: Yes.Customized logos can be print on the tent fabric according to your requirements.

  • Q: Is that factory price?

    A: Yes.We assure you all prices are based on factory.

  • Q: Does your tent be able to install repeatedly?

    A: Our tents can be assembled and dismantled and repeatedly with small transportation size.

  • Q: What documents are available?

    A: A full range documents including structural drawings,packing list,installation manual can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.

  • Q: Has your tent product been certified?

    A: Yes. Our tent product has passed the engineering tests. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and the flame retardant test base on the standard of German.

  • Q: How long is the warranty period?

    A: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly.
