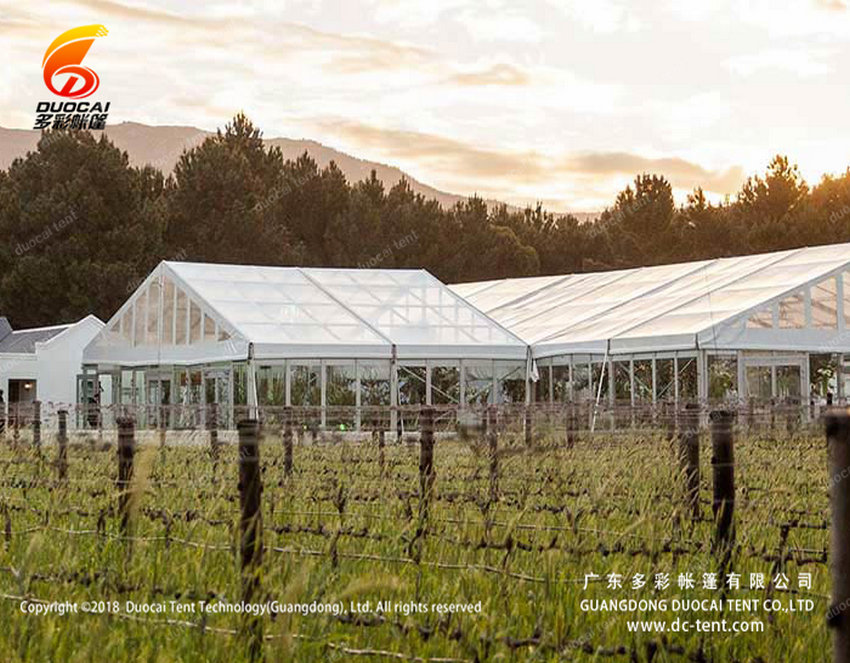

Unique transparent tent for dinner

Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)

PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2

Connector: Strong hot-dip galvanized steel

Temperture allowed: -30 degree Celsius to +70 degree Celsius

Wind load Max: 100 km/h , 0.3kn/sqm

Snow loading:75kg/sqm

Span: 3-50M

Length: Unlimited

Your One Stop Shop

Span	Eave height	Total height	Main plofile(mm)	Bay distance(m)	Roof slope (degree)	Roof and side PVC color/ option
10M	3M	4.8M	121*68	5	20	850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM.
12M	3M	4.9M	121*68	5	20
15M	3M	5.7M	166*88	5	20
18M	3M	6.2M	166*88	5	20
20M	4M	7.2M	203*110	5	18
25M	4M	8.0M	203*110	5	18
30M	4M	8.8M	255*115	5	18
35M	4M	9.7M	300*125	5	18
40M	4M	11M	300*125	5	18
45M	4M	11.5M	350*120	5	18
50M	4M	12.2M	350*120	5	18

Q: What size tent is necessary for your special event?

A: A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.
Q: Can you print our logos on tent?

A: Yes.Customized logos can be print on the tent fabric according to your requirements.
Q: Is that factory price?

A: Yes.We assure you all prices are based on factory.
Q: Does your tent be able to install repeatedly?

A: Our tents can be assembled and dismantled and repeatedly with small transportation size.
Q: What documents are available?

A: A full range documents including structural drawings,packing list,installation manual can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
Q: Has your tent product been certified?

A: Yes. Our tent product has passed the engineering tests. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and the flame retardant test base on the standard of German.
Q: How long is the warranty period?

A: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly.
