Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Wind load Max 100 km/h, 0.3kn/sqm
Temperture allowed: -30 degree Celsius ) to +70 degree Celsius
Length: Unlimited
Span: 10-50M
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 10M | 3M | 7 | 121*68 | 5 | / | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM |
| 12M | 3M | 7.8M | 121*68 | 5 | / | |
| 15M | 4M | 9.8M | 166*88 | 5 | / | |
| 20M | 4M | 11.8M | 203*110 | 5 | / | |
| 25M | 4M | 12M | 203*110 | 5 | / | |
| 30M | 4M | 13M | 255*115 | 5 | / | |
| 40M | 4M | 11.8M | 300*125 | 5 | / | |
| 50M | 4M | 13M | 335*123 | 5 | / |

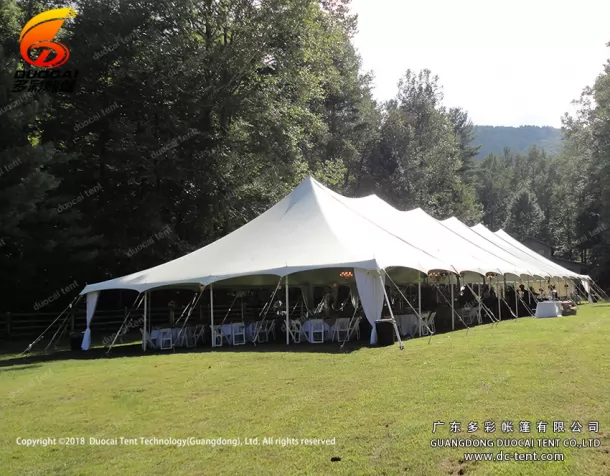

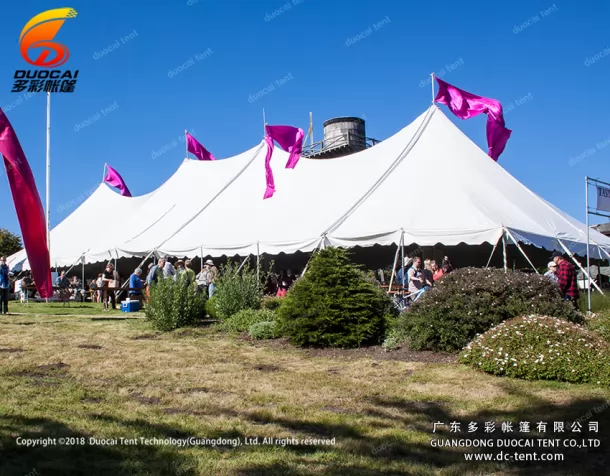

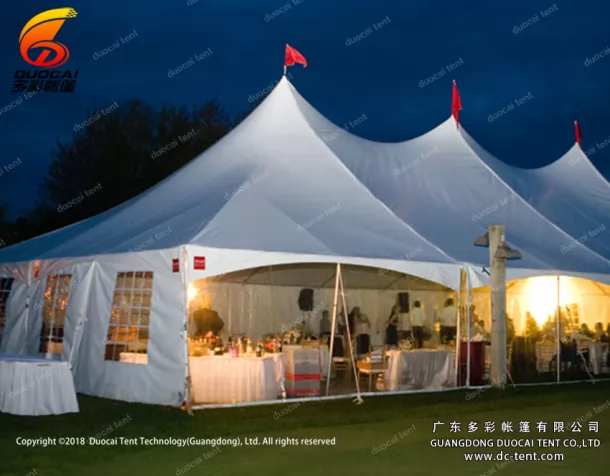

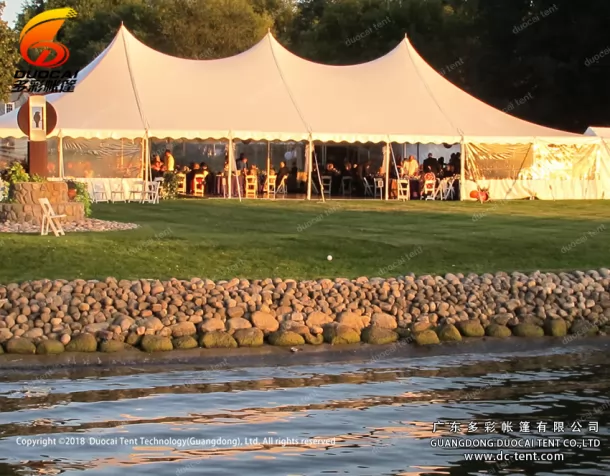

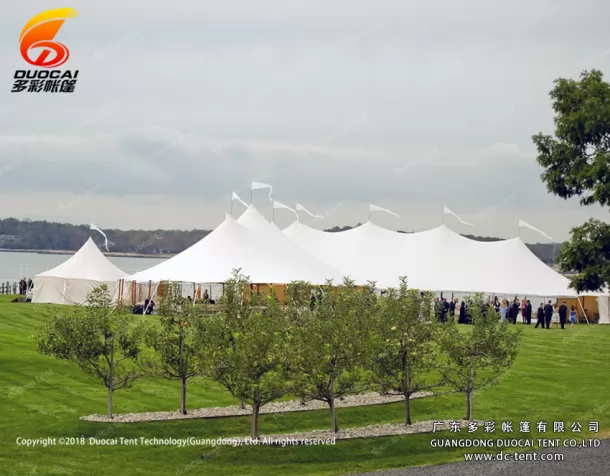

The High Peak Mixed Tent design is based on the party tent, new party tent, wedding tent, event tent, and gala tent. High Peak Tent is combined with a high peak and half polygon ends, and it is mostly used for high- class events.
