Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Wind load Max 100 km/h, 0.3kn/sqm
Temperture allowed: -30 degree Celsius ) to +70 degree Celsius
Length: Unlimited
Span: 10-50M
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 10M | 3M | 7 | 121*68 | 5 | / | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM |
| 12M | 3M | 7.8M | 121*68 | 5 | / | |
| 15M | 4M | 9.8M | 166*88 | 5 | / | |
| 20M | 4M | 11.8M | 203*110 | 5 | / | |
| 25M | 4M | 12M | 203*110 | 5 | / | |
| 30M | 4M | 13M | 255*115 | 5 | / | |
| 40M | 4M | 11.8M | 300*125 | 5 | / | |
| 50M | 4M | 13M | 335*123 | 5 | / |

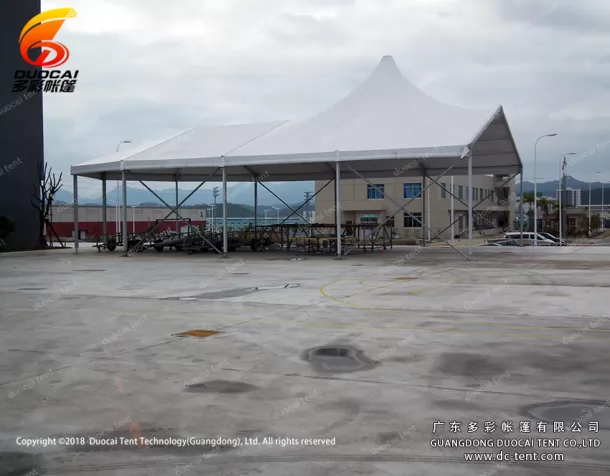

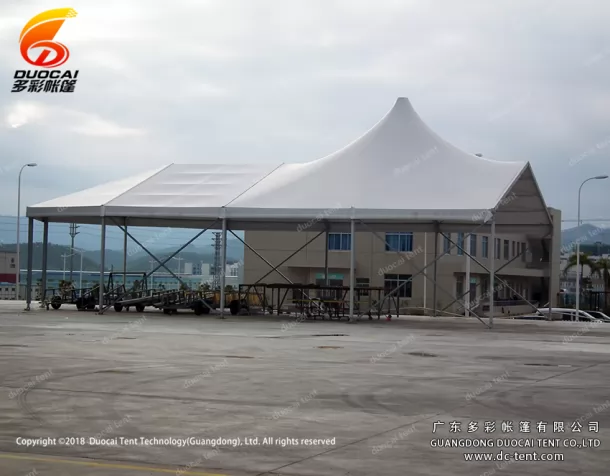

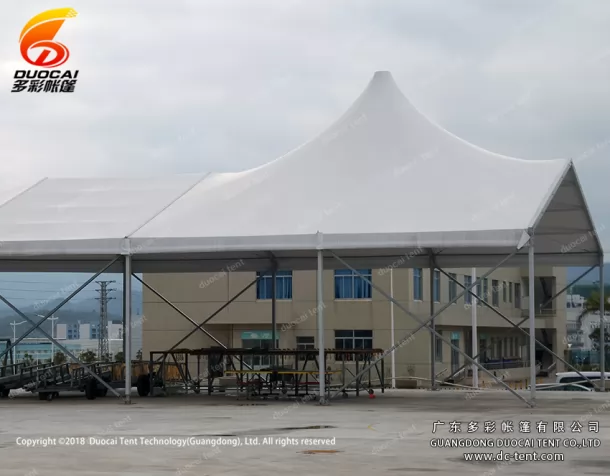

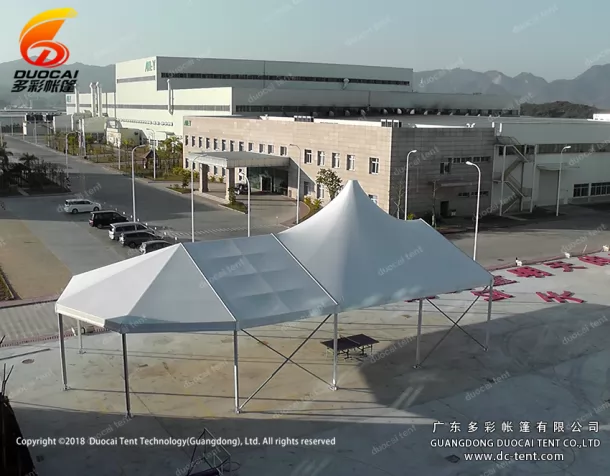

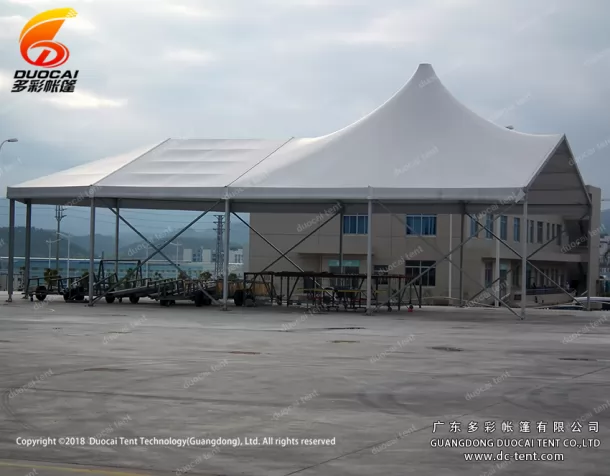

PVC structure marquee tent flexible frame can be combined with polygons to design 100% of indoor space, advanced design, safety and stability, wind speed up to 100 km/h (wind load 0.5 kN/m2), quick and easy disassembly, small storage and transportation. Plus tarpaulin tensioning system. It can easily deal with wind, sand, rain, and snow, and is widely used in outdoor large private parties. It provides perfect outdoor space solutions for wedding parties, product promotions, sports events, outdoor weddings, and holiday celebrations.
There are 6m-15m, 15-40m, etc. in the span of the tent. If you have other specifications, we can also customize it for you.
