Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Wind load Max 100 km/h, 0.3kn/sqm
Temperture allowed: -30 degree Celsius ) to +70 degree Celsius
Length: Unlimited
Span: 10-50M
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 10M | 3M | 7 | 121*68 | 5 | / | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM |
| 12M | 3M | 7.8M | 121*68 | 5 | / | |
| 15M | 4M | 9.8M | 166*88 | 5 | / | |
| 20M | 4M | 11.8M | 203*110 | 5 | / | |
| 25M | 4M | 12M | 203*110 | 5 | / | |
| 30M | 4M | 13M | 255*115 | 5 | / | |
| 40M | 4M | 11.8M | 300*125 | 5 | / | |
| 50M | 4M | 13M | 335*123 | 5 | / |

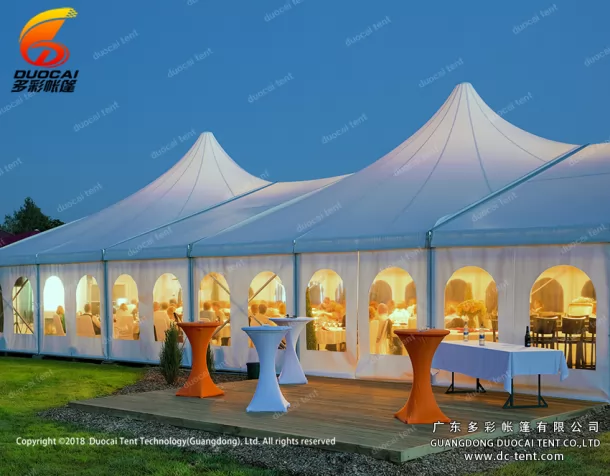

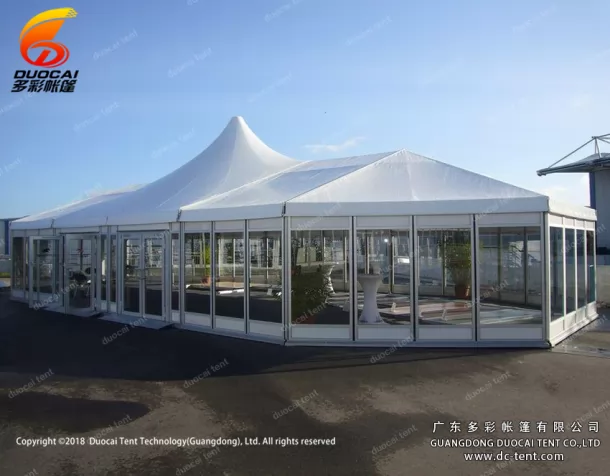

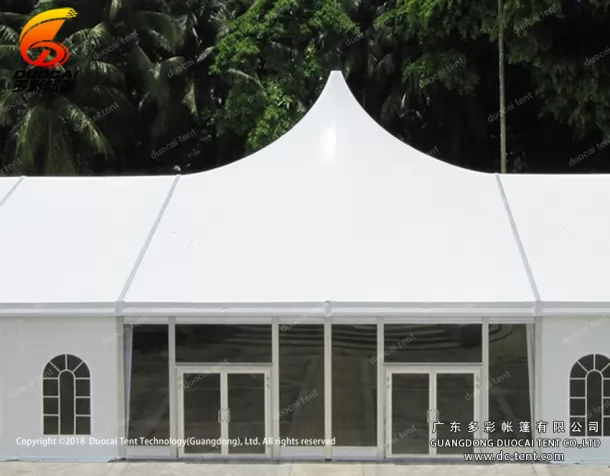

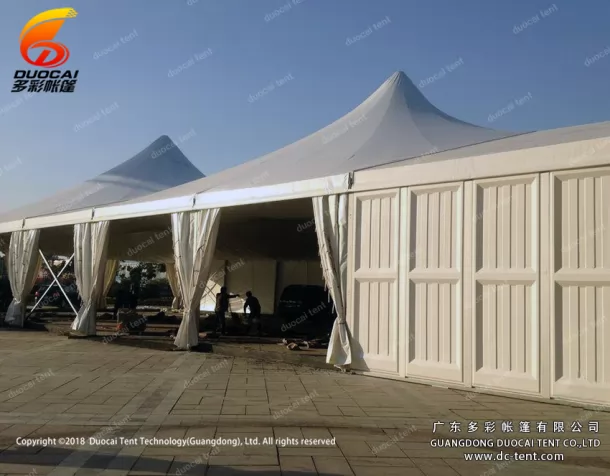

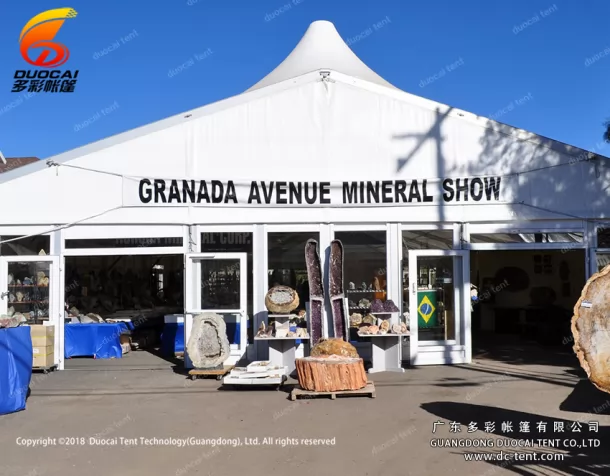

The combined tent is usually a combination tent or a new party tent, a wedding tent, an active tent, or a holiday tent.The style is more chic, often used in high-end and gorgeous outdoor activities. Because of its beautiful appearance, the construction is free from the restrictions of the venue, and it can be used freely for outdoor exhibition booths, weddings, receptions, backyard barbecues, catering, banquets, etc. It is also used as Hajj in foreign countries.
