PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Temperture allowed: -30 degree Celsius ) to +70 degree Celsius
Wind load Max 80 km/h, 0.3kn/sqm
Span: 3-10M
Length: 3-10M
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 3M | 2.4M | 4.1M | 65*65 | 3 | / | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM. |
| 4M | 2.4M | 4.7M | 65*65 | 4 | / | |
| 5M | 2.7M | 5.4M | 65*65 | 5 | / | |
| 6M | 2.7M | 6M | 65*65 | 6 | / | |
| 8M | 2.7M | 5.5M | 121*68 | 8 | / | |
| 10M | 2.7M | 6.6M | 121*68 | 10 | / |

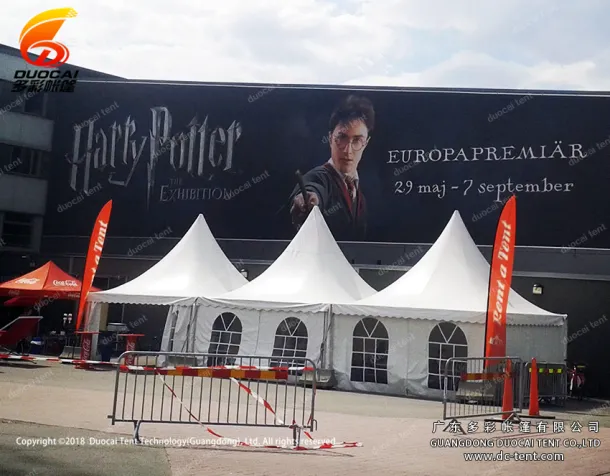

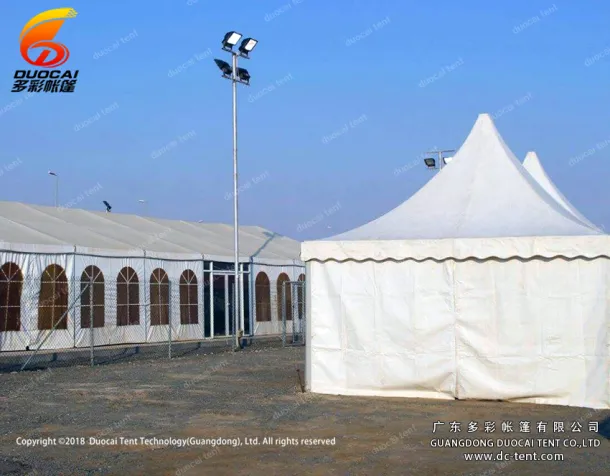

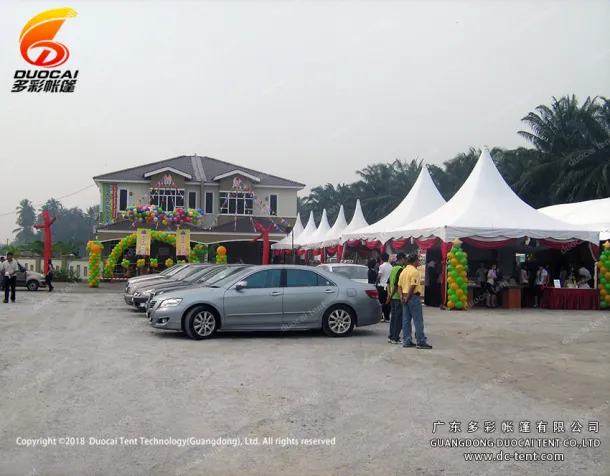

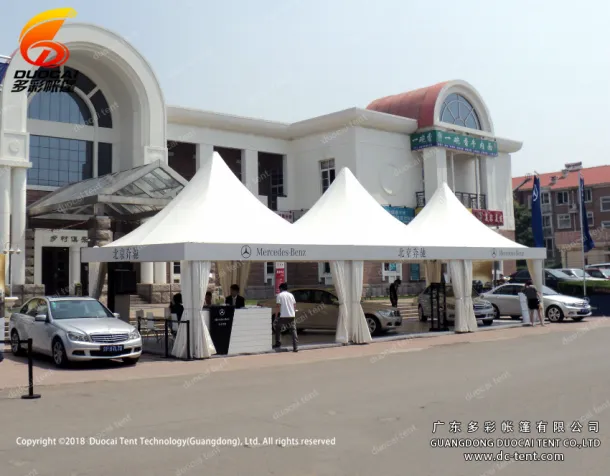

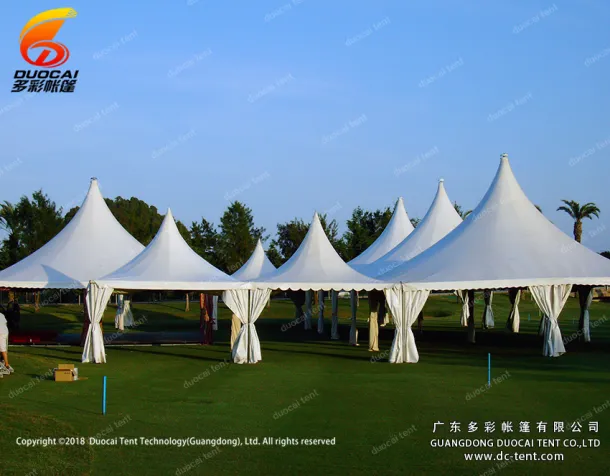

Duocai Aluminium pagoda marquee tent common specifications are 3 m × 3 m, 4 m × 4 m, 5 m × 5 m, 6 m × 6 m, 8 m × 8 m, 10 m × 10 m. The top of the canopy is a PVC tarp with the frame made of aluminum alloy. The aluminum frame is very durable and can be used for 20-30 years. The PVC tarp can be used for 5 years. Outdoor tent color is diverse, it can be white, transparent, yellow, red, blue, beige and so on.
