Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Temperture allowed: -30 degree Celsius to +70 degree Celsius
Wind load Max: 100 km/h , 0.3kn/sqm
Snow loading:75kg/sqm
Span: 3-10M
Length: Unlimited
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 3M | 2.7M | 3.2M | 84*48 | 3 | 22 | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM. |
| 4M | 2.7M | 3.4M | 84*48 | 3 | 22 | |
| 5M | 2.7M | 3.6M | 84*48 | 3 | 22 | |
| 6M | 2.7M | 3.8M | 84*48 | 3 | 22 | |
| 7M | 2.7M | 4.0M | 84*48 | 3 | 22 | |
| 8M | 2.7M | 4.2M | 84*48 | 3 | 22 | |
| 9M | 2.7M | 4.4M | 84*48 | 3 | 22 | |
| 10M | 2.7M | 4.6M | 84*48 | 3 | 22 |

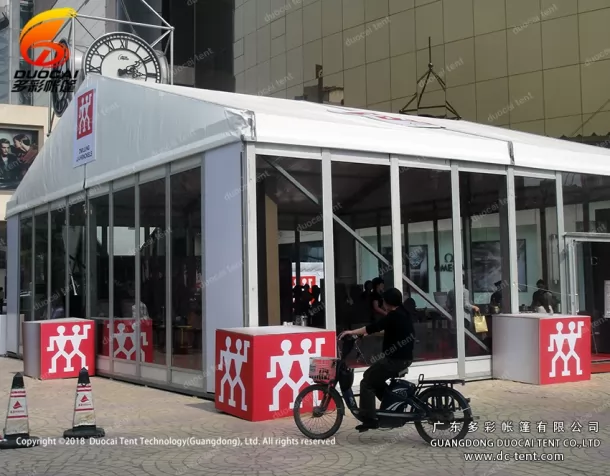

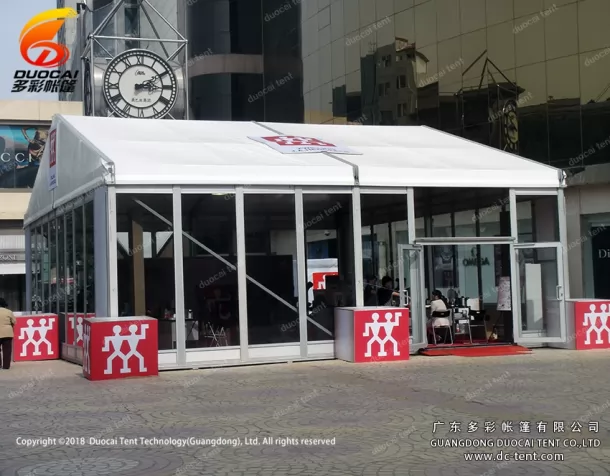

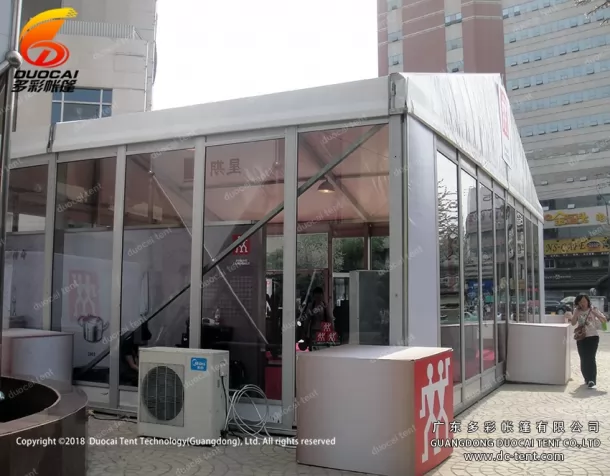

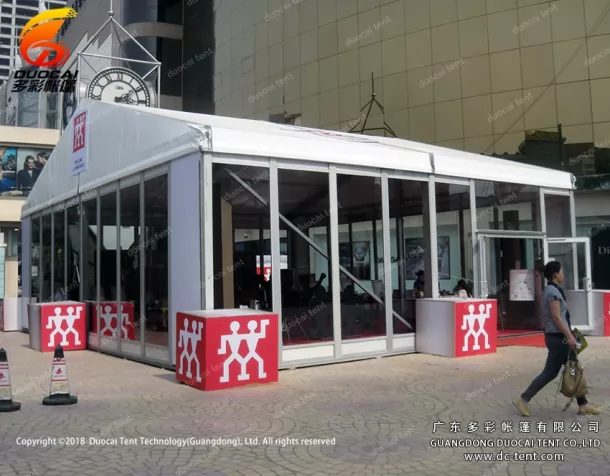

Tent is a new type of temporary structure for outdoor activities. It is an application of tents. It is convenient for storage and transportation and is called "mobile property." Tents are now the food festival, auto show, real estate sales, commercial activities and other activities of choice, because the activities of tents do not need to be controlled by the venue, any styling.
Tent roof cloth and cloth can be based on the effect you want to choose a different color design, and we are using UV sunscreen waterproof PVC fabric. The interior of the tent you can match the floor, carpet, top mantle, curtain, veil, lighting, lighting, stage, etc. to enhance the canopy grade.
