Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Temperture allowed: -30 degree Celsius to +70 degree Celsius
Wind load Max: 100 km/h , 0.3kn/sqm
Snow loading:75kg/sqm
Span: 3-50M
Length: Unlimited
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 3M | 2.7M | 3.2M | 84*48 | 3 | 22 | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM. |
| 4M | 2.7M | 3.4M | 84*48 | 3 | 22 | |
| 5M | 2.7M | 3.6M | 84*48 | 3 | 22 | |
| 6M | 2.7M | 3.8M | 121*68 | 3 | 22 | |
| 7M | 2.7M | 4.0M | 121*68 | 3 | 22 | |
| 8M | 2.7M | 4.2M | 121*68 | 3 | 22 | |
| 9M | 2.7M | 4.4M | 255*115 | 3 | 22 | |
| 10M | 2.7M | 4.6M | 300*125 | 3 | 22 |

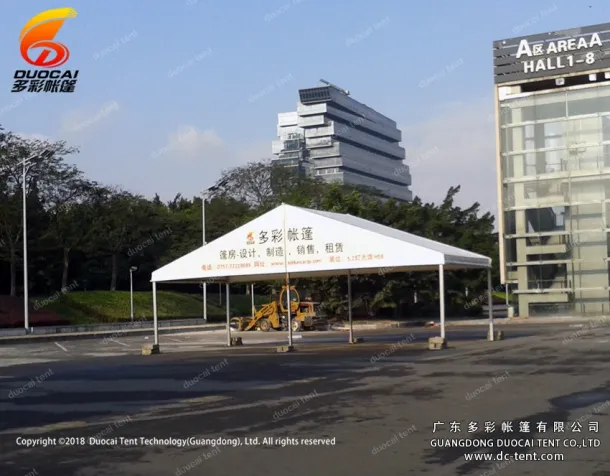

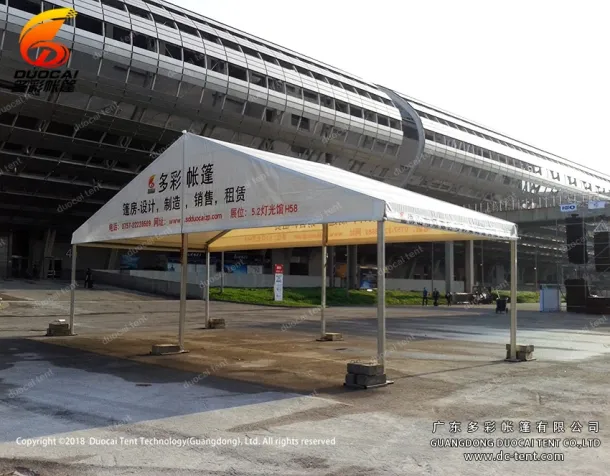

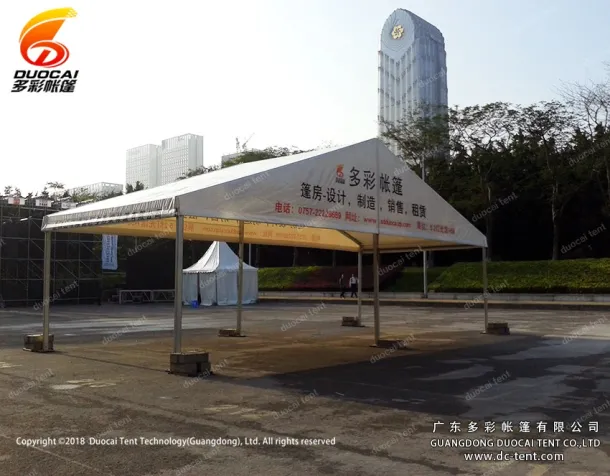

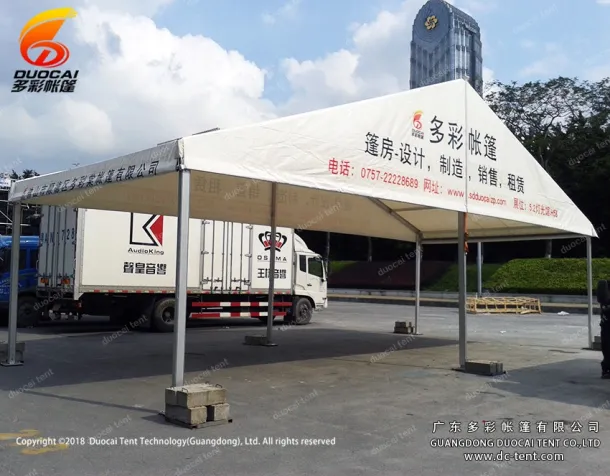

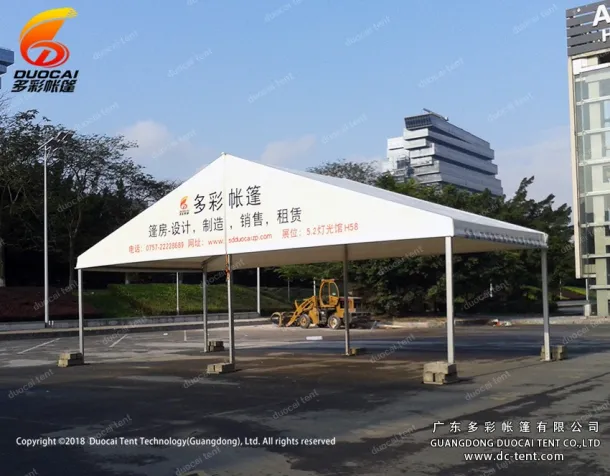

Waterproof Marquee Tents refers to a temporary building or semi-permanent building which is mainly composed of a framework of alloy profiles or steel structures and a tarpaulin. Can be used for short-term outdoor activities, or for large-scale, large-span, unimpeded internal space, but also quick loading and unloading temporary or permanent works.
The structure of tents generally aluminum alloy profiles and steel frame, aluminum frame with beautiful, durable, not rusty features
Development: Tents originated in Europe, which is different from ordinary tents is equivalent to a temporary building, safe and reliable performance, for different types of venues can be quickly and easily set up. Tent room empty without any extra beam, the space utilization rate of 100%, through your careful planning, more imaginative use of space, tents enhance the possibilities of outdoor activities,Enhance the brand new concept of activity.
