Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Wind load Max 100 km/h, 0.3kn/sqm
Temperture allowed: -30 degree Celsius ) to +70 degree Celsius
Length: Unlimited
Span: 10-50M
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 10M | 3M | 7 | 121*68 | 5 | / | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM |
| 12M | 3M | 7.8M | 121*68 | 5 | / | |
| 15M | 4M | 9.8M | 166*88 | 5 | / | |
| 20M | 4M | 11.8M | 203*110 | 5 | / | |
| 25M | 4M | 12M | 203*110 | 5 | / | |
| 30M | 4M | 13M | 255*115 | 5 | / | |
| 40M | 4M | 11.8M | 300*125 | 5 | / | |
| 50M | 4M | 13M | 335*123 | 5 | / |

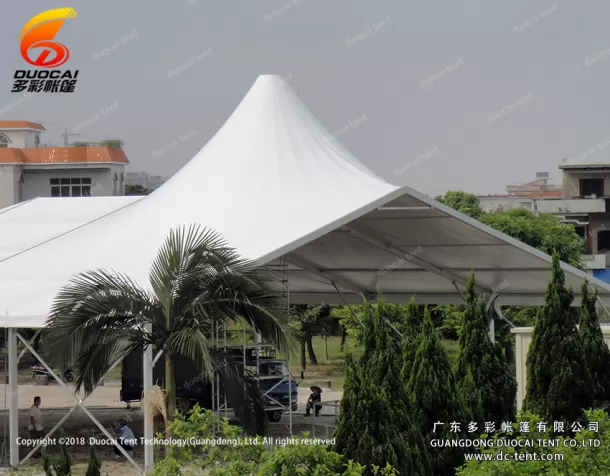

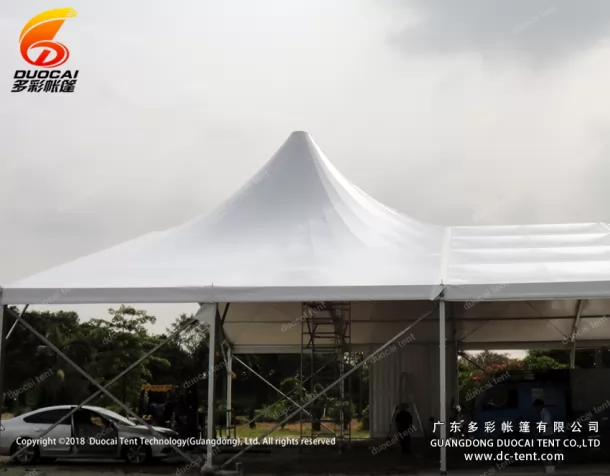

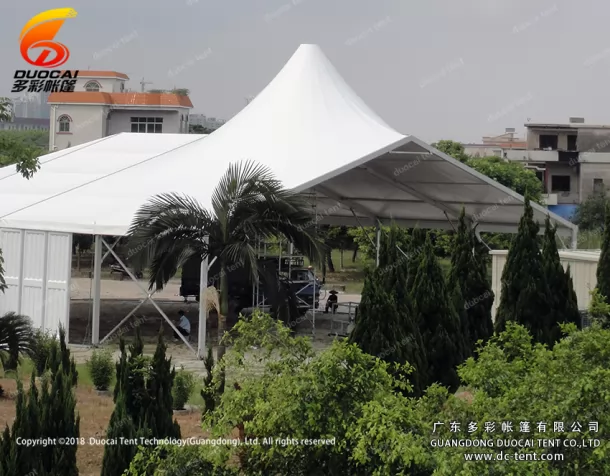

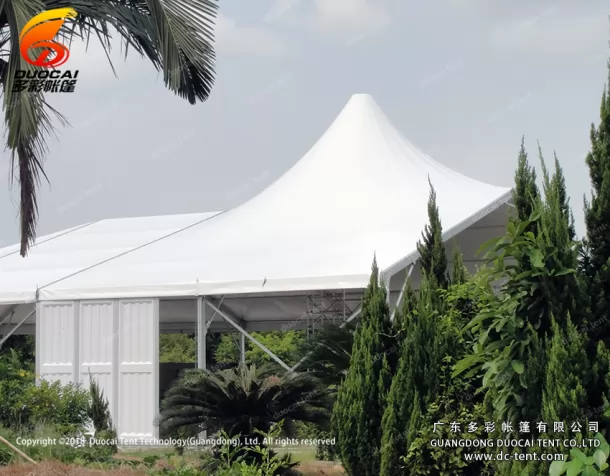

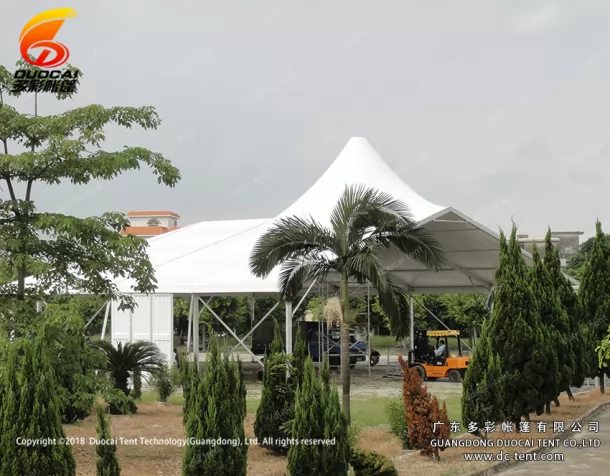

Mixed Tents originated in Europe, which is different from ordinary tents is equivalent to a temporary building, safe and reliable, for different types of venues can be quickly and flexibly built.
Tent main framework for high strength special aluminum alloy structure, light weight, will never rust; connection parts for the use of international welding
Technical steel structure, adjustable base can make up for the uneven ground. Tent with double PVC synthetic tarpaulin, the tarpaulin has not stretched, good performance of anti-UV, opaque, rain, fire level to achieve national standards.
