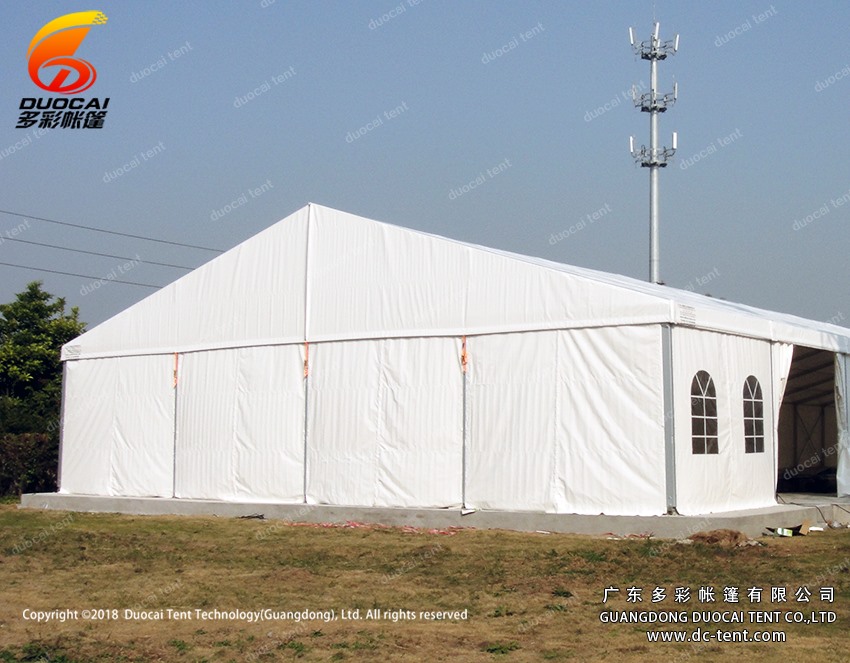

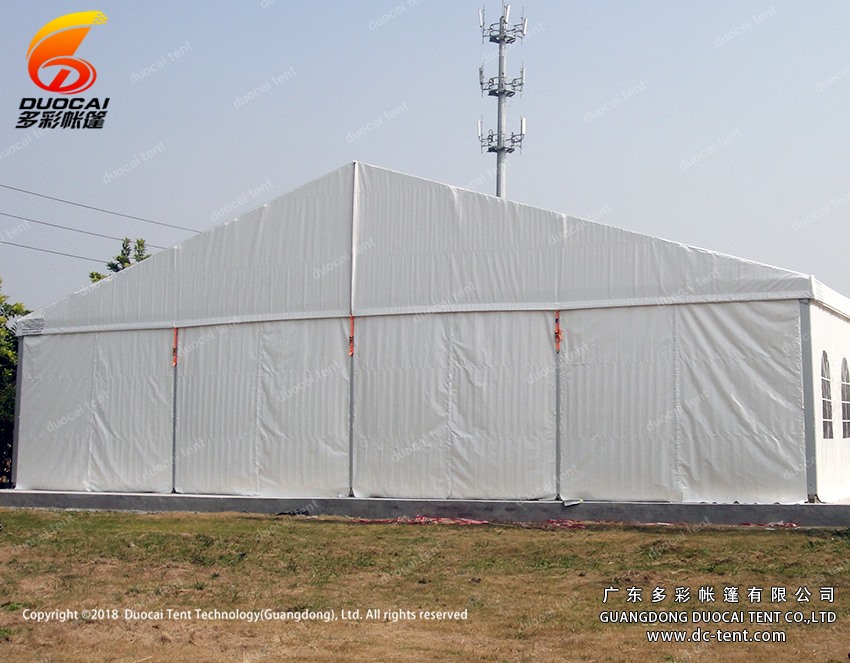

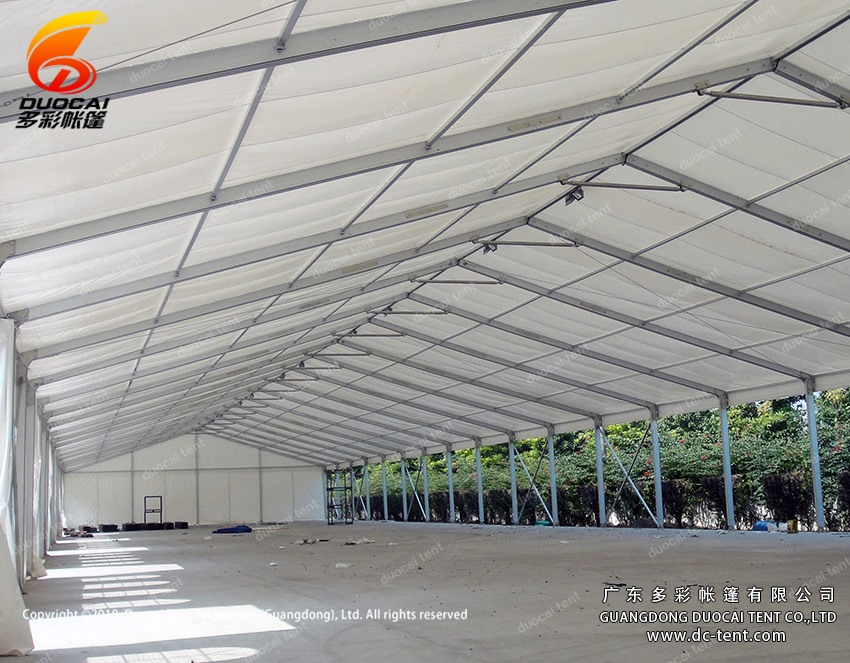

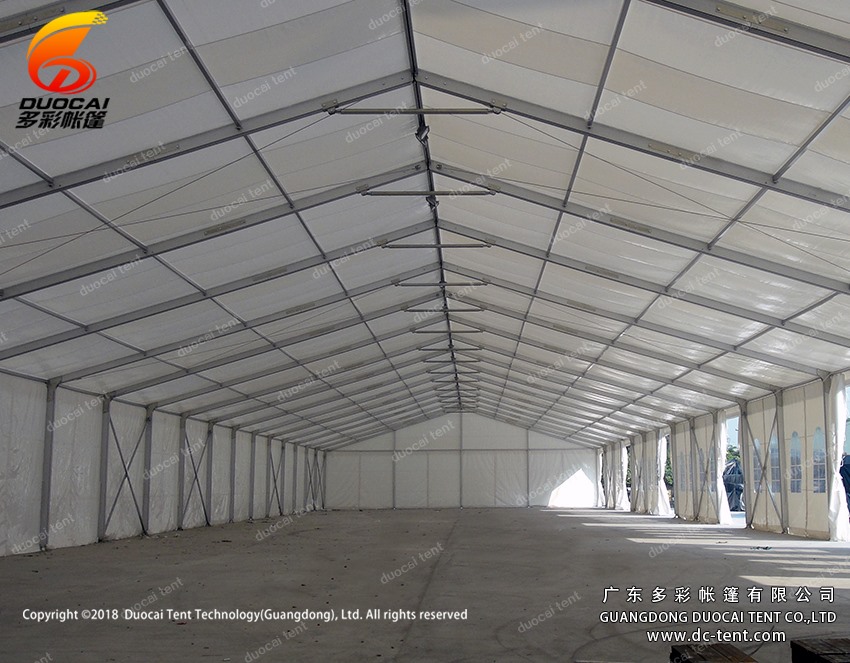

20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage
  • 20x50M large warehouse tent for cargo storage

20x50M large warehouse tent for cargo storage

Share

MARQUEES' SUPPORTING STRUCTURE

Plofile: Hard pressed extruded Aluminium 6061/T6(15HW)

PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2

Connector: Strong hot-dip galvanized steel

Temperture allowed: -30 degree Celsius to +70 degree Celsius

Wind load Max: 100 km/h , 0.3kn/sqm

Snow loading:75kg/sqm

Span: 3-50M

Length: Unlimited


  • Q: What size tent is necessary for your special event?

    A: A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.

  • Q: Can you print our logos on tent?

    A: Yes.Customized logos can be print on the tent fabric according to your requirements.

  • Q: Is that factory price?

    A: Yes.We assure you all prices are based on factory.

  • Q: Does your tent be able to install repeatedly?

    A: Our tents can be assembled and dismantled and repeatedly with small transportation size.

  • Q: What documents are available?

    A: A full range documents including structural drawings,packing list,installation manual can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.

  • Q: Has your tent product been certified?

    A: Yes. Our tent product has passed the engineering tests. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and the flame retardant test base on the standard of German.

  • Q: How long is the warranty period?

    A: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly.

20x50M large warehouse tent for cargo storage
Your One Stop Shop

SpanEave heightTotal heightMain plofile(mm)Bay distance(m)Roof slope(degree)Roof and side PVC color/ option
10M3M4.8M84*48520850g,650g,550g/sqm,

transparent,colorful and white etc;

PVC-coated polyester textile,flame

retardant to DIN 4102 B1,M2,CFM.

12M3M4.9M84*48520
15M3M5.7M84*48520
18M3M6.2M121*68520
20M4M7.2M121*68518
25M4M8.0M121*68518
30M4M8.8M255*115518
35M4M9.7M300*120518
40M4M11M
335*123518
45M4M11.5M350*120518
50M4M12.2M350*120518

China has one of the characteristics of plant, 70% of the buildings, there are 30% open space, when a plant bigger and stronger, and the existing building area is not enough to store goods, we can put the existing open space, However, we must also consider that this temporarily built factory can be wind-resistant, rain-proof and long-term use to ensure that the contents of the tent are not affected by external factors. Storage tents can meet all your requirements, the size can be customized according to the size of your venue, the top cloth with a completely opaque double-coated PVC fabric, semi-transparent cloth with a double-coated PVC coated cloth , The skeleton is aluminum skeleton, if you do not need to use this tent, and can be removed at any time, there is a need to use, reinstall on the line, the flexibility of more fixed buildings to be much better. The inside of the tent is completely hollow with a utilization rate of 100%. The storage warehouse tent is a good supplement to a temporary plant that is not available due to the existing plant.
