Profile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PVC-coated polyester textile, flame retardant to NFPA701, f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Temperature allowed: -30 degree Celsius to +70 degree Celsius
Wind load Max: 100 km/h, 0.3kn/sqm
Snow loading: 75kg/sqm
Span: 10-40M
Length: Unlimited
Span | Eave height | Total height | Main profile | Bay distance | Roof and side PVC color/option |
15M | 4M | 7.2M | 166*88mm | 5M | 850g, 650g, 550g/sqm, transparent, colorful and white etc; PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, CFM |
20M | 4M | 8.4M | 203*110mm | 5M | |
25M | 4M | 9.6M | 203*110mm | 5M | |
30M | 4M | 10.7M | 255*114mm | 5M | |
40M | 4M | 13.1M | 300*120mm | 5M |

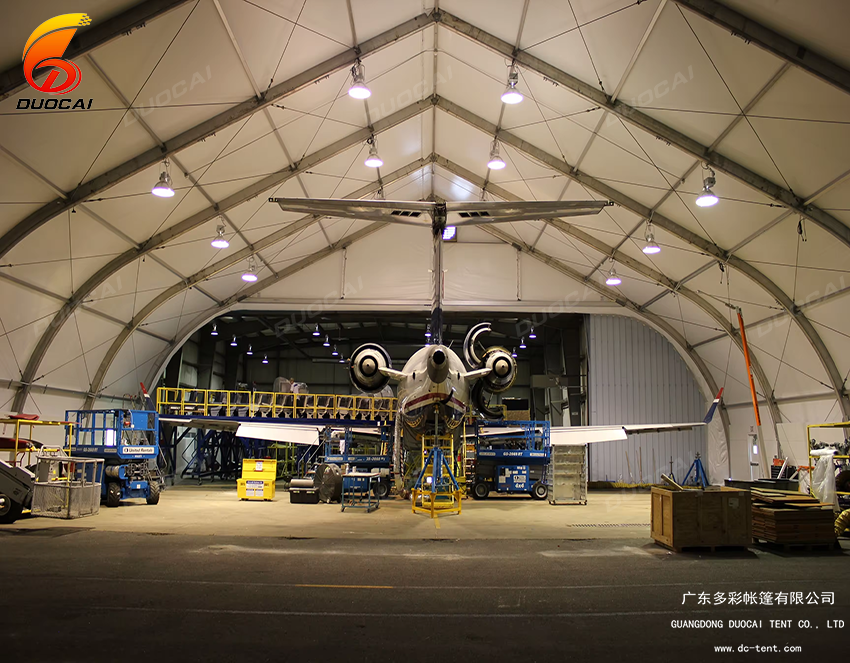

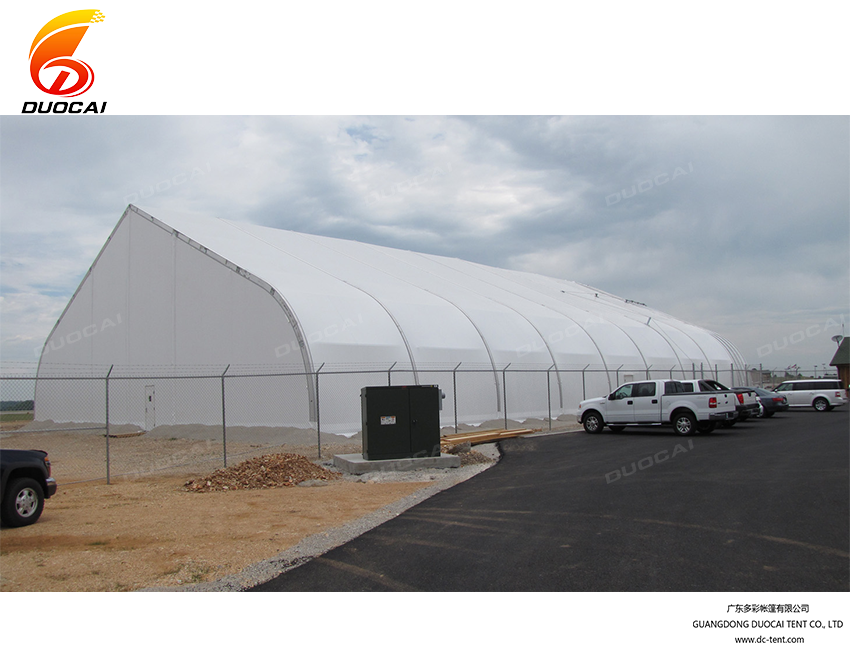

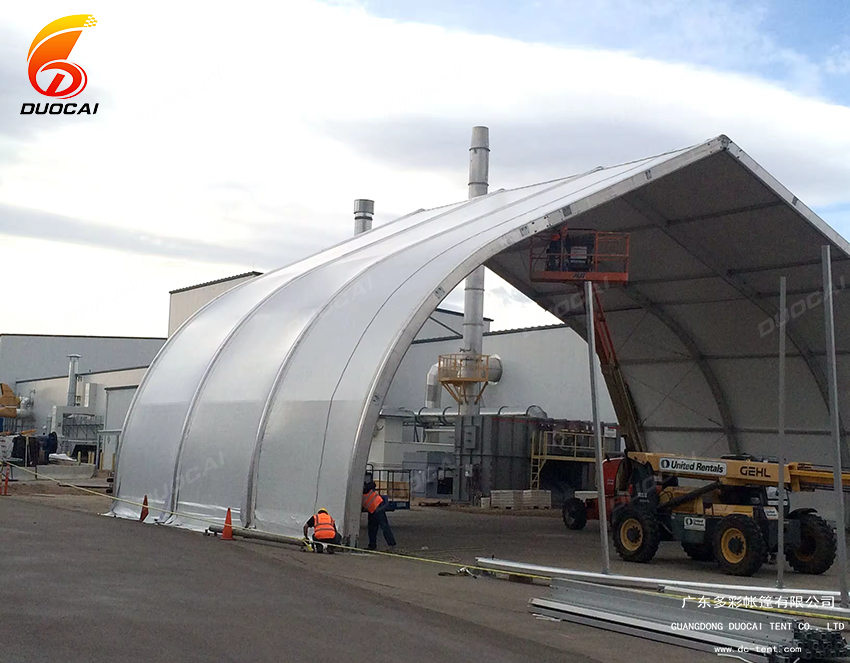

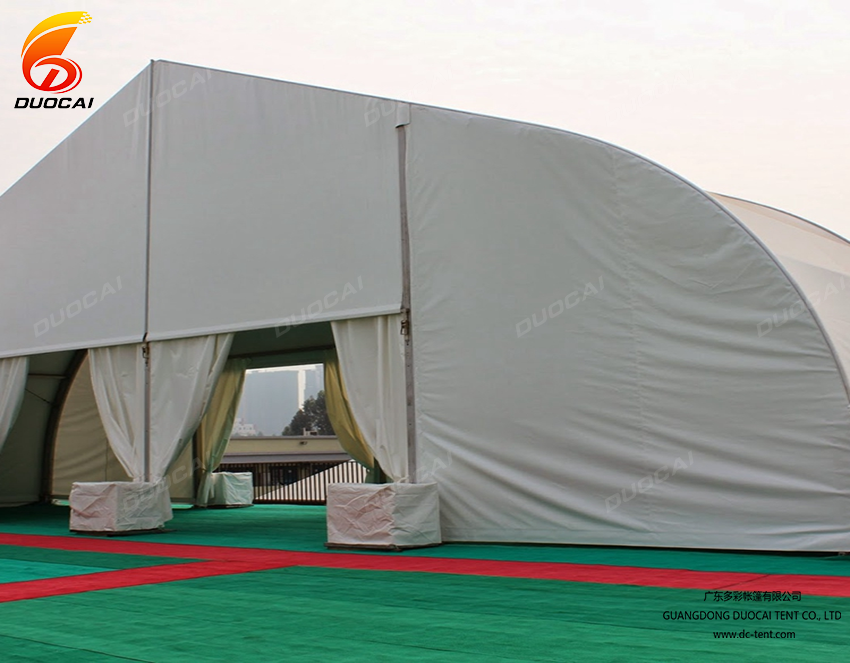

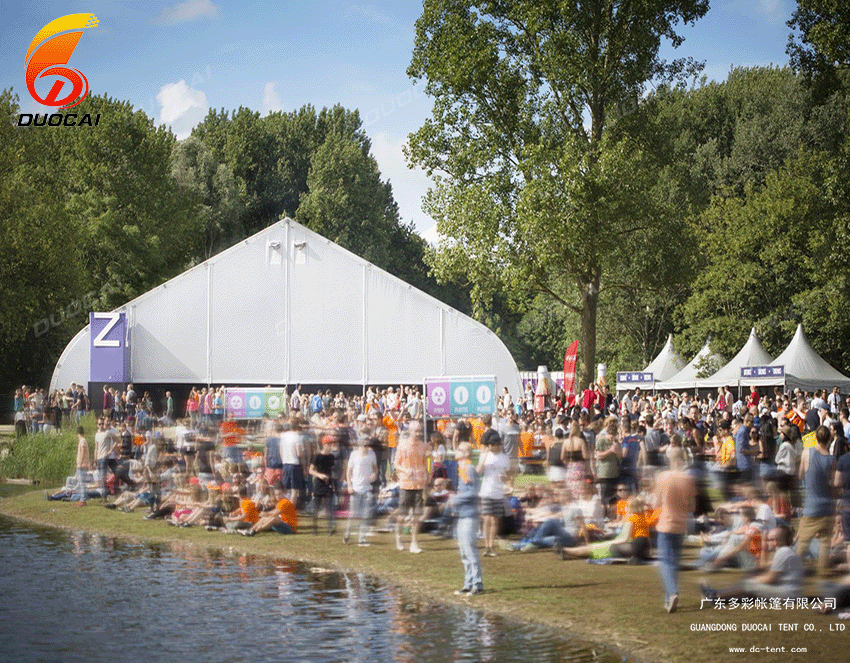

Curved tents are suitable for commercial exhibitions, festival celebrations, warehousing, outdoor leisure, sports events and other activities. Its unique design highlights an elegant and fashionable style, making it a trendy outdoor temporary and permanent building today. The canopy with a large angle and peach shaped arches on both sides provides a spacious interior without any pillar support, making 100% use of the space. The 850g/sqm PVC fabric has passed SGS certification, and the aluminum alloy frame is exquisitely processed and safe and stable.
Q: What size tent is necessary for your special event?
A: A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.
Q: Can you print our logos on tent?
A: Yes.Customized logos can be print on the tent fabric according to your requirements.
Q: Is that factory price?
A: Yes.We assure you all prices are based on factory.
Q: Does your tent be able to install repeatedly?
A: Our tents can be assembled and dismantled and repeatedly with small transportation size.
Q: What documents are available?
A: A full range documents including structural drawings,packing list,installation manual can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
Q: Has your tent product been certified?
A: Yes. Our tent product has passed the engineering tests. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and the flame retardant test base on the standard of German.
Q: How long is the warranty period?
A: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly.
